Adaptateurs - Grossisseur / RéductionQueue d'éjection LA679
Propriétés
Interchangeable avec :
≈ E1050, ≈ Z02, ≈ Z144.
Matière : 1.7131, ≈ 60 HRC

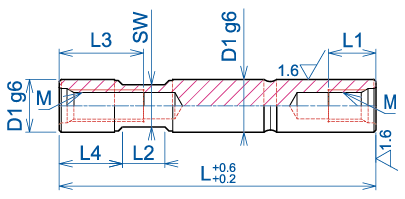

| M | L1 | L2 | L3 | L4 | SW |
| M6 | 5 | 10 | 2,3 | 4 | 4 |
| M8 | 6 | 10 | 4 | 4 | 4 |
| M10 | 6 | 10 | 5 | 5 | 5 |
| M12 | 8 | 17 | 5 | 6 | 6 |
| M16 | 8 | 17 | 5 | 6 | 6 |
| M20 | 8 | 17 | 7 | 6 | 6 |
M | D1 | L | Code Lugand | |||
M6 | 10 | 60 | 44 53 550 | QUEUE EJECTION LA679 M 6 10X 60 | 17.83 € | |
70 | 44 53 553 | QUEUE EJECTION LA679 M 6 10X 70 | 18.18 € | |||
80 | 44 53 556 | QUEUE EJECTION LA679 M 6 10X 80 | 18.52 € | |||
100 | 44 53 559 | QUEUE EJECTION LA679 M 6 10X100 | 19.06 € | |||
120 | 44 53 562 | QUEUE EJECTION LA679 M 6 10X120 | 19.72 € | |||
140 | 44 53 565 | QUEUE EJECTION LA679 M 6 10X140 | 20.40 € | |||
160 | 44 53 568 | QUEUE EJECTION LA679 M 6 10X160 | 23.98 € | |||
M8 | 14 | 60 | 44 53 580 | QUEUE EJECTION LA679 M 8 14X 60 | 19.38 € | |
70 | 44 53 583 | QUEUE EJECTION LA679 M 8 14X 70 | 20.03 € | |||
80 | 44 53 586 | QUEUE EJECTION LA679 M 8 14X 80 | 20.58 € | |||
100 | 44 53 589 | QUEUE EJECTION LA679 M 8 14X100 | 20.75 € | |||
120 | 44 53 592 | QUEUE EJECTION LA679 M 8 14X120 | 21.09 € | |||
140 | 44 53 595 | QUEUE EJECTION LA679 M 8 14X140 | 21.63 € | |||
160 | 44 53 598 | QUEUE EJECTION LA679 M 8 14X160 | 22.83 € | |||
M8 | 14 | 180 | 44 53 601 | QUEUE EJECTION LA679 M 8 14X180 | 24.18 € | |
200 | 44 53 604 | QUEUE EJECTION LA679 M 8 14X200 | 27.20 € | |||
M10 | 18 | 80 | 44 53 608 | QUEUE EJECTION LA679 M10 18X 80 | 22.78 € | |
100 | 44 53 610 | QUEUE EJECTION LA679 M10 18X100 | 23.15 € | |||
120 | 44 53 613 | QUEUE EJECTION LA679 M10 18X120 | 24.18 € | |||
140 | 44 53 616 | QUEUE EJECTION LA679 M10 18X140 | 26.29 € | |||
160 | 44 53 619 | QUEUE EJECTION LA679 M10 18X160 | 26.58 € | |||
180 | 44 53 622 | QUEUE EJECTION LA679 M10 18X180 | 27.46 € | |||
200 | 44 53 625 | QUEUE EJECTION LA679 M10 18X200 | 28.49 € | |||
240 | 44 53 631 | QUEUE EJECTION LA679 M10 18X240 | 30.72 € | |||
M12 | 18 | 100 | 44 53 637 | QUEUE EJECTION LA679 M12 18X100 | 23.89 € | |
120 | 44 53 639 | QUEUE EJECTION LA679 M12 18X120 | 24.89 € | |||
M12 | 20 | 70 | 44 53 648 | QUEUE EJECTION LA679 M12 20X 70 | 24.32 € | |
80 | 44 53 650 | QUEUE EJECTION LA679 M12 20X 80 | 24.52 € | |||
M12 | 20 | 100 | 44 53 653 | QUEUE EJECTION LA679 M12 20X100 | 25.55 € | |
120 | 44 53 656 | QUEUE EJECTION LA679 M12 20X120 | 26.23 € | |||
140 | 44 53 659 | QUEUE EJECTION LA679 M12 20X140 | 27.95 € | |||
160 | 44 53 662 | QUEUE EJECTION LA679 M12 20X160 | 28.80 € | |||
180 | 44 53 665 | QUEUE EJECTION LA679 M12 20X180 | 30.18 € | |||
200 | 44 53 668 | QUEUE EJECTION LA679 M12 20X200 | 31.55 € | |||
240 | 44 53 674 | QUEUE EJECTION LA679 M12 20X240 | 34.12 € | |||
24 | 70 | 44 53 684 | QUEUE EJECTION LA679 M12 24X 70 | 28.66 € | ||
100 | 44 53 688 | QUEUE EJECTION LA679 M12 24X100 | 30.20 € | |||
120 | 44 53 690 | QUEUE EJECTION LA679 M12 24X120 | 31.89 € | |||
160 | 44 53 696 | QUEUE EJECTION LA679 M12 24X160 | 35.32 € | |||
180 | 44 53 699 | QUEUE EJECTION LA679 M12 24X180 | 37.06 € | |||
200 | 44 53 702 | QUEUE EJECTION LA679 M12 24X200 | 39.26 € | |||
220 | 44 53 704 | QUEUE EJECTION LA679 M12 24X220 | 41.52 € | |||
M12 | 24 | 240 | 44 53 705 | QUEUE EJECTION LA679 M12 24X240 | 43.20 € | |
M16 | 30 | 100 | 44 53 712 | QUEUE EJECTION LA679 M16 30X100 | 42.18 € | |
120 | 44 53 714 | QUEUE EJECTION LA679 M16 30X120 | 43.52 € | |||
180 | 44 53 720 | QUEUE EJECTION LA679 M16 30X180 | 49.92 € | |||
220 | 44 53 723 | QUEUE EJECTION LA679 M16 30X220 | 55.38 € | |||
260 | 44 53 726 | QUEUE EJECTION LA679 M16 30X260 | 61.38 € | |||
300 | 44 53 729 | QUEUE EJECTION LA679 M16 30X300 | 68.40 € | |||
M20 | 10 | 200 | 44 53 751 | QUEUE EJECTION LA679 M20 40X200 | 75.03 € | |
240 | 44 53 757 | QUEUE EJECTION LA679 M20 40X240 | 80.80 € | |||
300 | 44 53 763 | QUEUE EJECTION LA679 M20 40X300 | 94.15 € | |||
4453748 | QUEUE EJECTION LA679 M20 40X180 | 41.49 € | ||||
4453641 | QUEUE EJECTION LA679 M12 18X160 | 15.23 € | ||||
4453642 | QUEUE EJECTION LA679 M12 18X180 | 15.75 € | ||||
4453686 | QUEUE EJECTION LA679 M12 24X 80 | 16.78 € | ||||
4453693 | QUEUE EJECTION LA679 M12 24X140 | 19.09 € | ||||
4453716 | QUEUE EJECTION LA679 M16 30X140 | 25.83 € | ||||
4453722 | QUEUE EJECTION LA679 M16 30X200 | 30.43 € | ||||
4453643 | QUEUE EJECTION LA679 M12 18X200 | 16.32 € | ||||
4453671 | QUEUE EJECTION LA679 M12 20X220 | 18.89 € | ||||
4453732 | QUEUE EJECTION LA679 M16 30X340 | 41.12 € | ||||
4453640 | QUEUE EJECTION LA679 M12 18X140 | 15.03 € |
