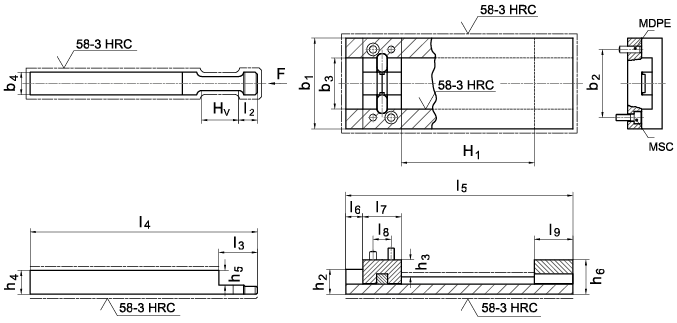

Loquet fermeture moule LA438
Propriétés
Interchangeable avec : Z174, 200-1, Z4-1.
Matière : 1.2764
●❶
●❷
●❸
●❹
b1 | H1 mini | H1 maxi | Hv | Code Lugand | F [kN] | l5 | l6 | l7 | l9 | l8 | b3 | b2 | h2 | h6 | h3 | MDPE | MSC | l4 | l3 | l2 | b4 | h5 | h4 | |||
50 | 4 | 90 | 20 | 44 40 604 | LOQUET FERMETURE MOULE LA438 50X 90X20 | 330.00 € | 16 | 140 | 10 | 20 | 20 | 10 | 30,05 | 40 | 16 | 22,3 | 9,3 | 6x20 | 4x12 | 140 | 40 | 9,75 | 15 | 10 | 16 | |
80 | 5,5 | 117 | 0 | 44 40 608 | LOQUET FERMETURE MOULE LA438 80X117X 0 | 470.00 € | 27 | 200 | 15 | 34 | 34 | 16 | 45,05 | 60 | 22 | 30,3 | 12,3 | 6x20 | 6x16 | 200 | 66 | 16,75 | 20 | 13 | 21 | |
4440616 | LOQUET FERMETURE MOULE LA438 100X145X 0 | 590.00 € | ||||||||||||||||||||||||
4440612 | LOQUET FERMETURE MOULE LA438 80X117X32 | 480.00 € |
